Debugging Pyspark in Eclipse with PyDev

An earlier post shows how to run Pyspark (Spark 2.1.0) in Eclipse (ver 2024-06 (4.32)) using the PyDev (ver 12.1) plugin. The OS is Ubuntu-20.04 with Java-8, & an older version of Python3.5 compatible with PySpark (2.1.0).

While the Pyspark code runs fine within Eclipse, when trying to Debug an error is thrown:

    Pydev: Unexpected error setting up the debugger: Socket closed".

This is due to a higher Python requirement (>3.6) for pydevd debugger module within PyDev. Details from the PyDev installations page clearly state that Python3.5 is compatible only with PyDev9.3.0. So it's back to square one.

Install/ replace Pydev 12.1 with PyDev 9.3 in Eclipse

• Uninstall Pydev 12.1 (Help > About > Installation details > Installed software > Uninstall PyDev plugin)

• Also manually remove all Pydev folders from eclipse/plugins folder (com.python.pydev.* & org.python.pydev.*)

• Download & Install PyDev 9.3 from Download location as per instructions


• Unzip to eclipse/dropins folder

• Restart eclipse & check (Help > About > Installation details > Installed software)

Test debugging Pyspark
Refer to the steps to Run Pyspark on PyDev in Eclipse, & ensure the PyDev Interpreter is python3.5, PYSPARK_PYTHON variable and PYTHONPATH are correctly setup.

Finally, right click on network_wordcount.py > Debug as > Python run
(Set up Debug Configurations > Arguments & provide program arguments, e.g. "localhost 9999", & any breakpoints in the python code to test).



Pyspark in Eclipse with PyDev

This post captures the steps to get Spark (ver 2.1) working within Eclipse (ver 2024-06 (4.32)) using the PyDev (ver 12.1) plugin. The OS is Ubuntu-20.04 with Java-8, Python 3.x & Maven 3.6.

(I) Compile Spark code

The Spark code is downloaded & compiled from a location "SPARK_HOME".

    export SPARK_HOME="/SPARK/DOWNLOAD/LOCATION"

    cd ${SPARK_HOME}

    mvn install -DskipTests=true -Dcheckstyle.skip -o

(Issue: For a "Failed to execute goal org.scalastyle:scalastyle-maven-plugin:0.8.0:check":
Copy scalastyle-config.xml to the sub-project (next to pom.xml) having the error.

(II) Compile Pyspark
    (a) Install Pyspark dependencies

• Install Pandoc

        sudo apt-get install pandoc

• Install a compatible older Pypandoc (ver 1.5)

        pip3 install pypandoc==1.5

• Install a compatible older Python 3.x (ver 3.5)

        sudo add-apt-repository ppa:deadsnakes/ppa

        sudo apt-get install python3.5

    (b) Build Pyspark

        cd ${SPARK_HOME}/python

        export PYSPARK_PYTHON=python3.5

        # Build - creates ${SPARK_HOME}/python/build
        python3.5 setup.py

        # Dist - creates ${SPARK_HOME}/python/dist
        python3.5 setup.py sdist

    (c) export PYTHON_PATH

    export PYTHONPATH=$PYTHONPATH:${SPARK_HOME}/python/:${SPARK_HOME}/python/lib/py4j-0.10.4-src.zip:${SPARK_HOME}/python/pyspark/shell.py;

(III) Run Pyspark from console
    Pyspark setup is done & stanalone examples code should run. Ensure variables ${SPARK_HOME}, ${PYSPARK_PYTHON} & ${PYTHONPATH} are all correctly exported (steps (I), (II)(b) & (II)(c) above):

    python3.5 ${SPARK_HOME} /python/build/lib/pyspark/examples/src/main/python/streaming/network_wordcount.py localhost 9999

(IV) Run Pyspark on PyDev in Eclipse

    (a) Eclipse with PyDev plugin installed:
    Set-up tested on Eclipse (ver 2024-06 (4.32.0)) and PyDev plugin (ver 12.1x).

    (b) Import the spark project in Eclipse
    There would be compilation errors due to missing Spark Scala classes.

    (c) Add Target jars for Spark Scala classes
    Eclipse no longer has support for Scala so the corresponding Spark Scala classes are missing. A work around is to add the Scala target jars compiled using mvn (in step (I) above) manually to:

        spark-example > Properties > Java Build Path > Libraries


    (d) Add PyDev Interpreter for Python3.5
    Go to: spark-example > Properties > PyDev - Interpreter/ Grammar > Click to confure an Interpreter not listed > Open Interpreter Preferences Page > New > Choose from List:

    & Select /usr/bin/python3.5



 On the same page, under the Environment tab add a variable named "PYSPARK_PYTHON" having value "python3.5"

    (e) Set up PYTHONPATH for PyDev

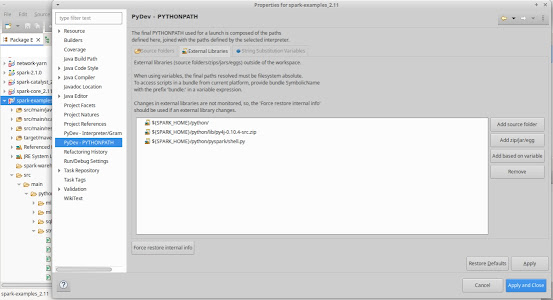

    spark-example > Properties > PyDev - PYTHONPATH

• Under String Substitution Variables add a variable with name "SPARK_HOME" & value "/SPARK/DOWNLOAD/LOCATION" (same location added in Step (I)).



• Under External Libraries, Choose Add based on variable, add 3 entries:


                 ${SPARK_HOME}/python/

                 ${SPARK_HOME}/python/lib/py4j-0.10.4-src.zip

                 ${SPARK_HOME}/python/lib/py4j-0.10.4-src.zip

   With that Pyspark should be properly set-up within PyDev.

    (f) Run Pyspark from Eclipse

    Right click on network_wordcount.py > Run as > Python run
    (You can further change Run Configurations > Arguments & provide program arguments, e.g. "localhost 9999")

Scala IDE no more

Sad that Scala IDE for Eclipse is no longer supported. While it was a great to have Scala integrated within Eclipse, guess the headwinds were too strong!
